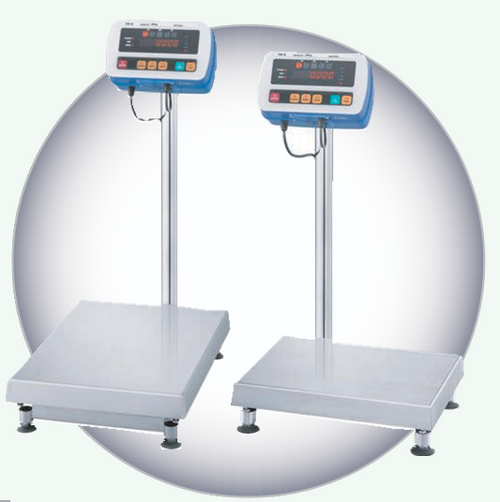

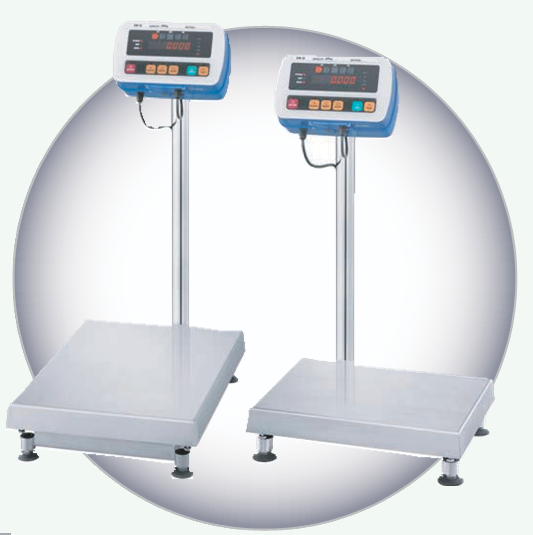

SW Series Super Wash Down Scales

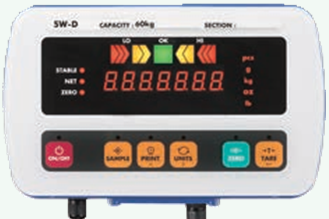

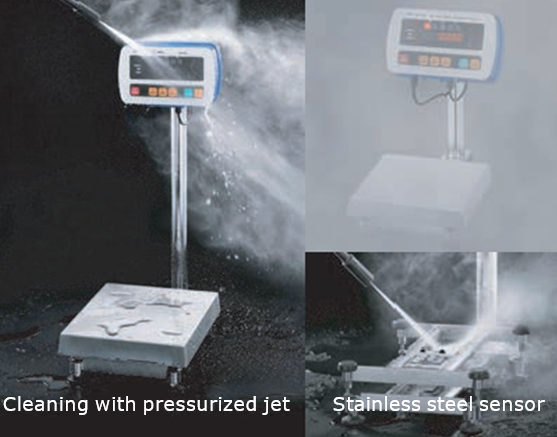

Ultimate protection against the effects of condensation as well as water Stainless steel weighing pan, frame and load cell Rugged and adjustable (0º, 30º, 60º or 90º) indicator bracket Touch sensitive capacitive keys to prevent damage from sharp objects Auto-tare function to facilitate consecutive check weighing Bright, multicoloured LED display with 5-step comparator lamps Frame and weigh pan are stainless steel SUS304 and loadcell is SUS630 Three sizes of base units, which are also available separately Pole stand attachable to either the short or long side of the platform The display unit available separately as an IP69K indicator for high pressure washdown Specifications       SW-6KS SW-15KS       SW-15KAM SW-30KAM     SW-60KAM SW-150KAM     SW-60KAL    SW-150KAL $3,640 Part Number 06161100 06161800 06161200 06161300 06161400 06161500 06161600 06161700 Calibration External External External External External External External External Capacity 6kg 15kg 15kg 30kg 60kg 150kg 60kg 150kg Resolution NMI Approved 2g 5g 5g 10g 20g 50g 20g 50g Adjustable Resolution 0.5g/1g/2g 1g/2g/5g 1g/2g/5g 2g/5g/10g 5g/10g/20g 10g/20g/50g 5g/10g/20g 10g/20g/50g Dimensions 250(W)x480(D)x354(H) 300(W)x601(D)x723(H) mm 390(W)x751(D)x723(H) Pan Size (SUS304) 250mm x 250mm 300mm x 380mm 390mm x 530mm Power Supply Rechargeable battery (included)   Accessories Part Number Serial Cable Wire connection for terminal to DB9 Female 03000004 06162001 SW OP-04 RS422/485 interface 06162002 SW OP-11 Bench/Wall bracket 06162004 SW-D Indicator display (without bracket) Non Trade Indicator 06162100 Replacement Rechargeable Battery (Approx. 90hrs) ECEB-6V-YUASA
